At less than $100, the U7-Lite, first announced on March 3, 2025, along with the similarly specced U7 In-Wall, is a modest access point, as the name suggests.
However, if you don’t need the top Wi-Fi coverage or bandwidth, or live in regions where the 6GHz band is not available, it’s an excellent way to add Wi-Fi 7 to your network, preferably one hosted by a UniFi console. Consider it today.
Ubiquiti U7-Lite: A well-performing modest dual-band Wi-F7 access point
Like most UniFi access points for home and SMB users, the U7-Lite is part of Ubiquiti’s Flaship category.
Tip
Ubiquiti has a few categories of Wi-Fi access points, including:
- Flagship: These are high-performance, ceiling-mounted access points.
- Outdoor: Weatherproof APs that can be mounted to poles outside or conveniently placed on a surface indoors.
- Enterprise: Top-capacity APs with 1,000+ client support, long-range 6 GHz performance, and 10 GbE PoE connectivity with native high-availability architecture for critical enterprise environments.
- Wall: These are sleek APs that plug directly into a wall outlet for meshed connectivity or transform an Ethernet drop into an AP.
- Mega Capacity: APs that are designed for stadiums or amphitheaters with a very high density of connected devices.
- Bridging: Devices that serve as a high-performance network bridge without the wire.
A UniFi access point can belong to multiple categories. The E7 Audience, for example, is an enterprise outdoor access point with mega capacity.
As a result, aside from the hardware specifications, the AP is similar to the rest of the UniFi family. While the lack of the 6GHz band may be disappointing to some, the U7-Lite has several advantages, in addition to its low cost.

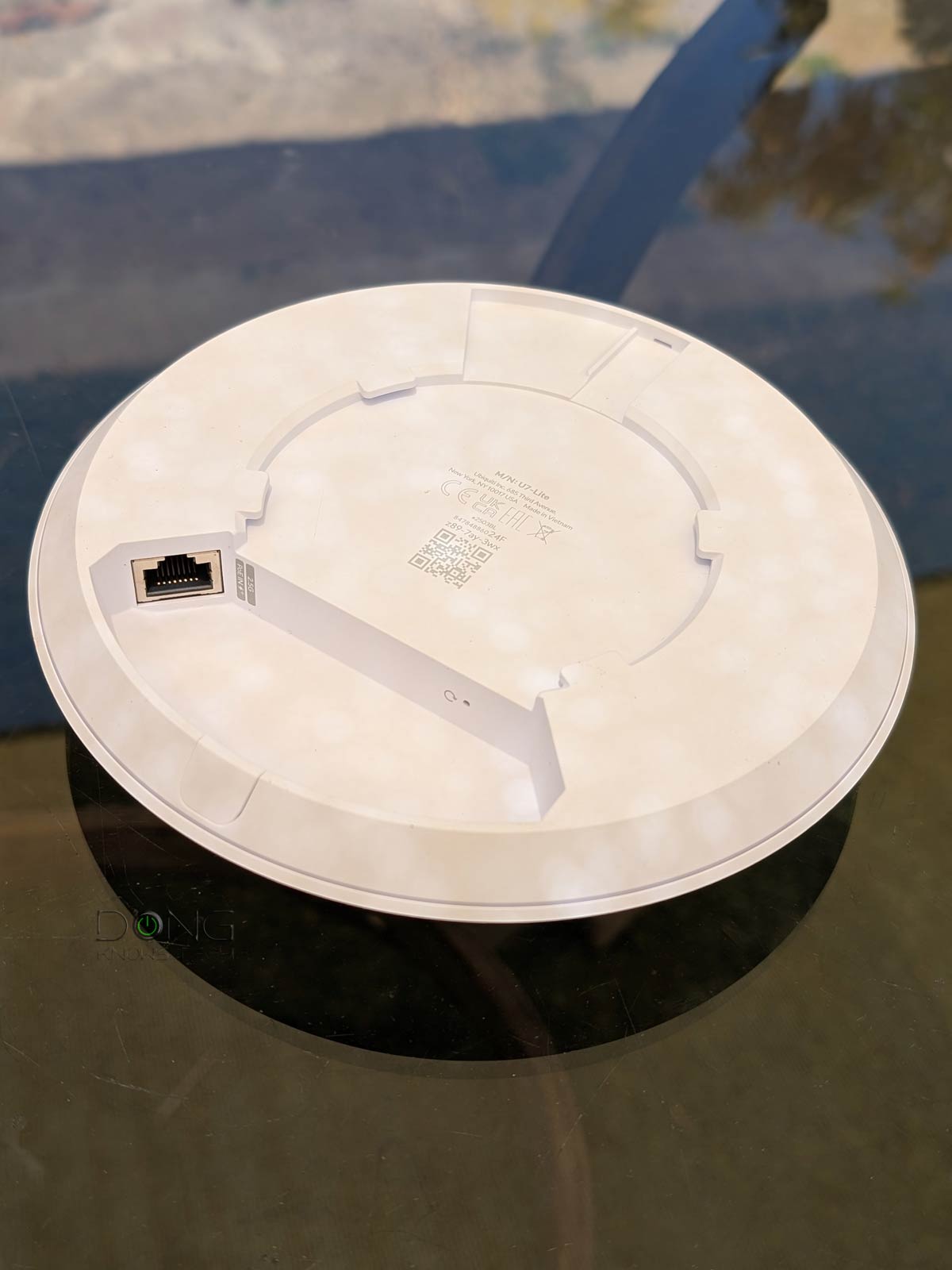

The first thing to note is that it’s compact, measuring just about 60% of the size of the U7 Pro Max, which shares the same dome-like design. Additionally, it features the lowest PoE power draw, allowing it to work with any existing active PoE switches or injectors. You can add it directly to any PoE-enabled UniFi router (console) without getting an additional power source.
The table below shows the hardware details of the U7-Lite against those of the U7 Pro Max.
Ubiquiti U7 Pro XGS vs. U7 Pro Max: Hardware specifications
 |
 |
|
|---|---|---|
| Model | U7-Lite | U7 Pro Max |
| Wi-Fi Bandwidth | Dual-band BE5000 | Tri-band BE15000 |
| 1st Band 2.4GHz (channel width) |
2×2 BE: Up to 688Mbps (20/40MHz) |
|
| 2nd Band 5GHz (channel width) |
2×2 BE: Up to 4.3Gbps (20/40/80/160/240MHz) |
4×4 BE: Up to 8.6Gbps (20/40/80/160/240MHz) |
| 3rd Band 6GHz (channel width) |
None | 2×2 BE: Up to 5.7Gbps (20/40/80/160/320MHz) |
| Dedicated Spectral Scanning Radio | No | Yes |
| Backward Compatibility | 802.11ax/ac/n/g/a/b | |
| Max Concurrent Clients | 200+ | 500+ |
| Max SSIDs | 8 per band | |
| Max TX Power | 2.4GHz: 23 dBm 5GHz: 24 dBm |
2.4GHz: 23 dBm 5GHz: 29 dBm 6GHz: 23 dBm |
| Antenna Gain | 2.4GHz: 4 dBi 5GHz: 5 dBi |
2.4GHz: 4 dBi 5GHz: 6 dBi 6GHz: 5.9 dBi |
| Multi-Link Operation (MLO) |
Yes | |
| Automated Frequency Coordination (AFC) |
No | |
| Zeo-wait DFS | Yes | No |
| Real-Time Spectral Analysis | Yes | Yes |
| Wi-Fi Coverage (estimate) |
1,750 ft² (160 m²) | |
| Power over Ethernet (PoE) |
802.3af (PoE) |
802.3at (PoE+) |
| Max Power Draw | 13W | 25W |
| Internal Cooling Fan | No | Yes |
| Uplink Network Port | 1x 2.5GBASE-T | |
| Security | WPA, WPA2, WPA3 | |
| Local Web-based Management | No (as a standalone AP) |
|
| Cloud-Management (UI account required) |
Yes (free) | |
| Mobile App | UniFi | |
| Mode | Access Point | |
| Dimensions | Ø6.8 x 1.3″ (Ø171.5 x 33 mm) |
Ø8.1 x 1.8″ (Ø206 x 46 mm) |
| Weight (with mounting accessories) |
11 oz (313 g) | 1.5 lb (680 g) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) | -30 to 50° C (-22 to 122° F) |
| LED | Color-changing (white/blue) ring LED | |
| US Launch Price (Compare prices and detailed specs!) |
$99 | $279 |
A familiar UniFi access point
Despite being dual-band with modest hardware specs, the U7-Lite has similar features and settings to the rest of the UniFi family of access points. As a result, you can expect the following from it:
- The U7-Lite can work as a standalone access for any network hosted by a third-party router. In this case, you must use the UniFi mobile app to set up and manage it. The AP is best used with a network powered by a UniFi controller and can be quickly adopted via a single click, then managed through the console’s interface, as it’s now part of a UniFi system.
- Users have in-depth access to radio and SSID customization; however, at startup, the access generally selects the best settings for the situation.
- The access point feature is MLO, but considering its dual-band specs, this generally doesn’t mean much in terms of improved bandwidth or data rates.
Overall, when working with a UniFi console, the U7-Lite is a pleasure to use in terms of setup, management, and functionality. As for the performance, it wasn’t the best, obviously, but also not the worst in my testing. It’s far from bad.
Ubiquiti U7-Lite: Gig+ performance with good coverage
Considering the hardware specifications and physical size, I didn’t expect much from the U7-Lite. It’s a “light” Wi-Fi 7 access point after all. However, with that baseline, I was pleased with how the U7-Lite performed in real-world use.
As it was the first dual-band Wi-Fi 7 access point I had used, I compared it with other dual-band Wi-Fi 7 routers, most of which come with 10Gbps ports, and the small access point held its own. Generally, you can expect low Gig+ sustained data rates from it when using Wi-Fi 6 and newer clients at a close range with a line of sight.
Tip
Gig+, or Gig Plus, denotes a speed grade that is faster than 1Gbps but slower than 2Gbps. So, it’s 1.5Gbps, give or take a couple hundred megabits per second, and it’s not speedy enough to qualify as Multi-Gig Ethernet or multi-Gigabit. Intel coined the term to describe its Wi-Fi 6E client chips, the AX210 and AX211, in terms of their real-world speeds.
Gig+ primarily applies to the sustained speeds of Wi-Fi 6 or Wi-Fi 7, via a 2×2 at 160MHz connection, or broadband internet speeds.
Further out, you’ll get between 300Mbps and close to a Gigabit, which is enough in most cases.
In terms of range, the U7-Lite is definitely less than the U7 Pro Max. I noted that my test clients started to lose a bar from a distance of approximately 40 feet (13 meters) within line of sight. But the AP’s coverage proved to be quite impressive compared to what Ubiquit claims.
It’s not easy to put Wi-Fi coverage in numbers, but generally, when placed at the center, you can expect the U7-Lite to cover approximately 1,500 ft² (139 m²)—your mileage may vary.
Having no internal fan, the U7-Lite is completely silent during operation. And it didn’t become hot, either, with the kind of heat the U7 Pro Max generated. I did become slightly warm, especially on the underside, but never to the point of causing concerns.
Pros
Reliable performance with good coverage for the modest specs; 2.5Gbps uplink port
Seamless integration with a UniFi console to deliver a robust mesh system with lots of advanced and useful features
Simple to set up and manage, fanless design, low PoE power draw, runs relatively cool
Cons
No PoE injector included, mid-tier dual-band Wi-Fi 7 specs
No local web user interface as a standalone AP
Conclusion
The U7-Lite is a modest Wi-Fi 7 access point that gets the job done. It’s an easy way to upgrade your network to dual-band Wi-Fi 7.
Specifically, you can add it to the UDM, UDR, or even the UDR7 to extend the coverage, and in this case, it’ll work seamlessly with the console’s built-in Wi-Fi. Alternatively, you can add it to the UDM-SE or UCG-Max to enable Wi-Fi on the network.
No, it won’t give you the bragging rights, but it has enough to keep your devices connected, and more. At less than $100, it’s not much of a risk. By the way, if you want a flush-fit access point of the same harware specs and performance, the U7 In-wall is ane xcellent alternative. Consider either today! And when you’re at it, make sure you already a UniFi gateway (console) to host it, like one of those in the top-five list below.
